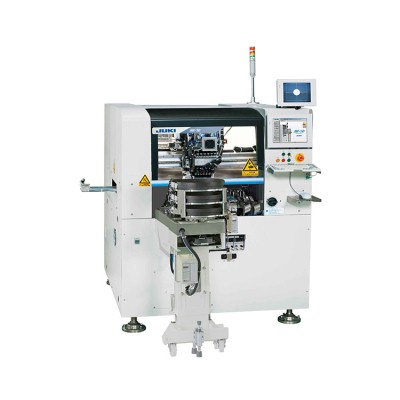

JUKI Multi Task Platform JM-20
❙ Introduce of JUKI JM-20
❙ Specification of JUKI JM-10
Multi Task Platform JM-10 | ||||
|
M-size board | L-size board | ||
Board Size | Single Clamp | 410×250mm | 410×360mm | |
Double Clamp | - | |||
PCB Weight | max.2kg | |||
Component Height |
28mm |
○ | ||
55mm | - | |||
Component Size | Laser recognition | 0603~□33.5mm | ||
Vision recognition*1 | 54mm view camera | □3mm~□33.5mm | ||
27mm view camera | 1005~□24mm | |||
Insertion Speed |
Vacuum (JUKI Condition)*2 | 0.8 sec/parts*3 | ||
Placement Speed(SMT) |
Chip (Optimal) |
17,500CPH*3 |
||
IC |
4,100CPH*3 |
|||
Placement Accuracy(SMT) |
Laser recognition |
±0.05mm(3σ) |
||
Vision recognition*1 |
±0.04mm |
Shenzhen ETA Technology Co., Ltd. Expert in Making Customized High Quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line, LED Assembly Line With More Than 23 Years Experience.
Our Goal is to Provide Customers With the Best Service Possible and to Produce Excellent Quality Products That Will Meet or Exceed Your Expectations.
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
