■ From 0402(01005) to 74mm square components or 50×150mm
■ KE-3020VA: One multi-nozzle laser head (6 nozzles) plus; one IC head with CDS sensor (1 nozzle)
■The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
■ MNVC is standard
■ High-speed, on-the-fly vision centering (When using both high-resolution camera and MNVC)
■ High speed feeding of tray components (Option)
■ Longer sized PWB in X axis(option)
■ PoP placement(option)

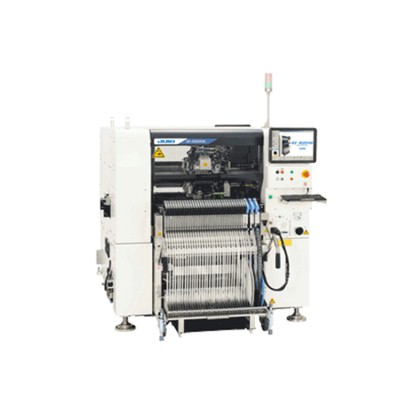

❙Specification of JUKI Chip Mounter
M size (330x250 mm)
L size (4FFF10x360 mm)
L-Wide size (510x360 mm) *1
XL size (610x560 mm)
Applicability to long PWB (L size)*2
Applicability to long PWB (L-Wide size)*2
Applicability to long PWB (XL size)*2
0402(01005)~33.5mm x 33.5mm
3mm~74mm x 74mm or 50 x150mm
1.0 x 0.5mm*3~48mm x 48mm or 24 x 72mm
±0.05 mm (±3σ)
Max.160 in case of 8mm tape (on a Electric double tape feeder)*6
*1. L-Wide size is optional
*2. Applicability to long PWB is optional.
*3. KE-3020VA ： When using high-resolution camera. (option)
*4. Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*5. Estimated value when using MNVC and picking up components simultaneous with all nozzles.
.MNVC is standard in the KE-3020VA.
*6. When using Electric double tape feeder EF08HD.
*PWB size XL will be KE-3020V.
❙ Customer factory
▽ETA Saudi Arabia customer
▽ ETA New Delhi, India customer
❙ Company Proflie
Shenzhen ETA Technology Co., Ltd. Expert in Making Customized High Quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line, LED Assembly Line With More Than 23 Years Experience.
Our Goal is to Provide Customers With the Best Service Possible and to Produce Excellent Quality Products That Will Meet or Exceed Your Expectations.
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA Exhibition
❙ ETA Products Certificate
❙ ETA Global Service
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
