Features
|
Features
|
• Class leading speed, up to 47,000 cph
• Newly developed “Takumi Head” with changing recognition sensor height
• Optimum line balance and highest throughput
• Wide component range from 0201 (metric) to large connectors and ICs
• Optimal for LED placement
specification

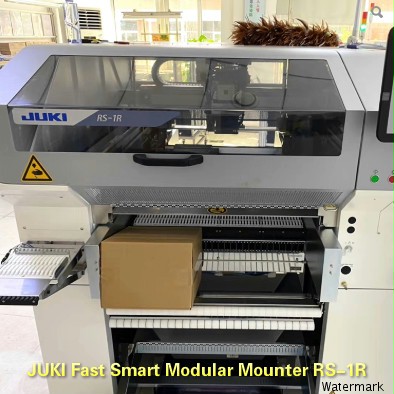

| Fast Smart Modular Mounter | |||||
| Model | RS-1R | ||||
| Conveyor specification | standard |
150mm conveyor extensions, upstream and downstream |
250mm conveyor extensions, upstream and downstream |
||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ （Single clamping） | |||
| 950×370 ㎜ （double clamping） | 1,100×370 ㎜ （double clamping） | 1,200×370 ㎜ （double clamping） | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～□74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ（Cpk≧1） | ||||
| Feeder inputs | max.112*2 | ||||
