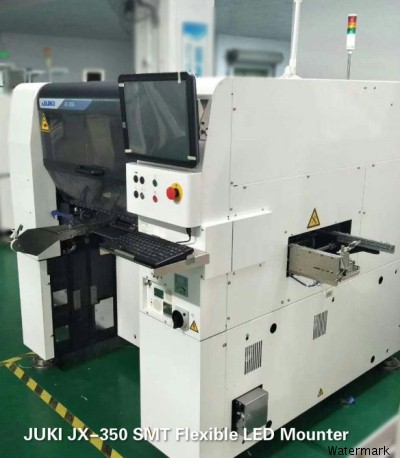

JX-350 Flexible LED Mounter
The new JX-350 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.
It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.
· Ultra-Long Board Support
· High Speed
· High Accuracy
|
Chip |
32,000CPH chip (Laser centering / Optimum) |
|
· From 0603 to □33.5mmsquare components · JUKI laser centering for high speed, high accuracy placement · Improved placement quality · Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter. · High-precision placement of diffusion lenses · Capable of up to 1,500 mm long board production, top class board size in industry.* · Various supply methods * *option |
|
Board size |
1time clamping |
650mm×360mm |
|
2time clamping |
1,200mm×360mm |
|
|
3time clamping* |
1,500mm×360mm |
|
|
Component height |
6mm / 12mm |
|
|
Component size |
0603(0201) ~ □33.5mm |
|
|
Placement speed (chip) |
Optimum |
32,000CPH |
|
IPC9850 |
21,000CPH |
|
|
Placement accuracy |
±0.05mm（Cpk≧1） |
|
|
Feeder inputs |
Front-side fixed mechanical |
Max.40 in case of 8mm tape |
|
Front+rear-side fixed mechanical |
Max.80 |
|
|
Front+rear-side fixed electrical |
Max.160 *2 |
|
