Name:JUKI Chip Shooter RS-1R

Model:RS-1R

Brief:

smt pick and place machine, chip mounter, chip shooter

• Class leading speed, up to 47,000 cph

• Newly developed “Takumi Head” with changing recognition sensor height

• Optimum line balance and highest throughput

• Wide component range from 0201 (metric) to large connectors and ICs

• Optimal for LED placement

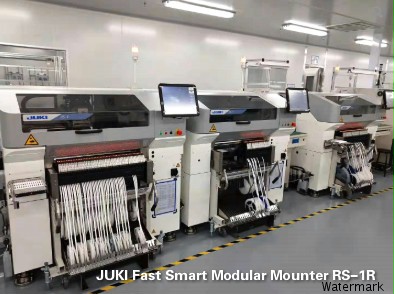

Fast Smart Modular Mounter
Model		RS-1R
Conveyor specification		standard	150mm conveyor extensions, upstream and downstream	250mm conveyor extensions, upstream and downstream
Board size	minimum	50×50㎜
	maximum	1 buffer	650×370 ㎜（Single clamping）
			950×370 ㎜（double clamping）	1,100×370 ㎜（double clamping）	1,200×370 ㎜（double clamping）
		3 buffers	360×370㎜	500×370㎜	600×370㎜
Component height		25㎜
Component size		0201*1 ～□74 ㎜ /150×50 ㎜
Placement speed	Optimum	47,000CPH
	IPC9850	31,000CPH
Placement accuracy		±35μｍ（Cpk≧1）
Feeder inputs		max.112*2
