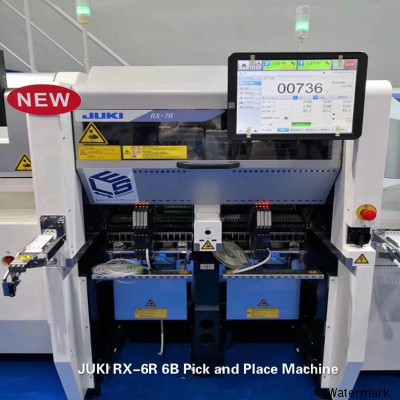

High Speed Compact Modular Mounter RX-6R/RX-6B
Juki's already reliable technology has evolved to an all new level! The compact RX-6R/RX-6B offers high productivity, flexibility and quality - in a compact footprint.
· Compact Footprint: the width is just 1.25 m
· New head design results in increased placement speed from previous model.
· Replaceable heads allow you to configure a production line best suited to the current requirements.
|
Placement speed |
Chip : 52,000CPH*2 |
|
Component size |
0402mm(01005 inch) ~ 50mm×50mm*4 |
|
Board size |
Single lane conveyor: |
|
Head unit |
6×6nozzle head |
|
· This is applicable to dual-lane production.*6 · Compact footprint : the width is just 1.25m · Equipped with standard Placement Monitor check function.*1 · Replaceable head allow you to configure a production line best suited to the current repirments.*6 · High-speed component placement using high-speed non-stop vision recognition.*3 · Wide range of components and boards: tall components, large components and large boards. · Brand new Matrix Tray Sever TR8S improves the component capability and productivity.
|
|
High-Speed Compact Modular Mounter RX-6R |
|||
|
Board size |
Single lane conveyor |
50×50 ~ 610×590 / 905×590mm(2times clamping) |
|
|
Dual lane conveyor |
– |
||
|
Component height |
6 / 12 / 20mm |
||
|
Component size |
Laser recognition |
0402 ~ 50mm×50mm |
|
|
Vision recognition*2 |
Standard camera |
3mm×3mm ~ 33.5mm×33.5mm |
|
|
High-resolution camera |
1005 ~ 24mm×24mm |
||
|
Placement speed |
Chip |
Optimum*3 |
52,000CPH |
|
IPC9850 |
29,000CPH |
||
|
IC*4 |
14,000CPH |
||
|
Placement accuracy |
Laser recognition |
±0.04mm(Cpk≧1)*5 |
|
|
Vision recognition*2 |
±0.04mm |
||
|
Component loading quantity |
Max.160 in case of 8mm tape |
||
|
High-Speed Compact Modular Mounter RX-6B (6×6 nozzle head) |
|||
|
Board size |
Single lane conveyor |
50×50 ~ 610×590 / 905×590mm (2times clamping) |
|
|
|
Dual lane conveyor |
50×50 ~ 360×250mm*1 |
|
|
Component height |
6 / 12 / 20 / 25 / 33mm |
||
|
Component size |
Component size |
0402 ~ 33.5mm×33.5mm |
|
|
Vision recognition*2 |
Standard camera |
3mm×3mm ~ 100mm×100mm / 50×180mm |
|
|
High-resolution camera |
1005 ~ 48mm×48mm / 24mm×72mm |
||
|
Placement speed |
Chip |
Option*3 |
34,000CPH |
|
IPC9850 |
23,000CPH |
||
|
IC*4 |
11,000CPH |
||
|
Placement accuracy |
Laser recognition |
±0.04mm(Cpk≧1) |
|
|
Vision recognition*2 |
±0.03mm |
||
|
Placement loading quantity |
Max.160 in case of 8mm tape |
||
