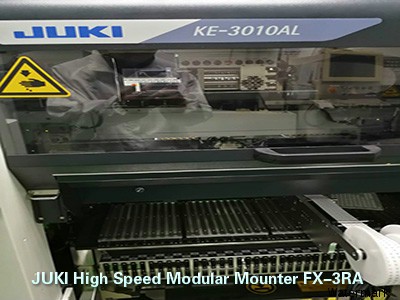

High Speed Modular Mounter FX-3RA
Refined high-speed, high-precision technology.
Developed under JUKI's "3E EVOLUTION" concept, the ever evolving FX series has been redesigned for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement sequence allow for an effective tact of 0.040 s/chip (90,000 CPH) (optimum conditions).
· Efficiency
· Cost Effectiveness
· Increased Expandability and Compatibility
Features: · 0402mm(01005 inch) ~ 33.5mm×33.5mm · Laser recognition : ±0.05mm(±3σ) · On-the-fly centering using integrated laser · 2 stations, 4 gantries, 4 placement heads, 24 nozzles · Linear servo motor XY drive with full closed-loop control · Holds up to 240 components · Electrical or mechanical feeder trolley |
Specification:
Item/Model |
High-Speed Modular Mounter |
High-Speed Modular Mounter |
|
Board size |
L size(410x360mm) |
yes |
no |
L-Wide size(510x360mm)*1 |
yes |
no |
|
XL size(610×560mm) |
no |
yes |
|
Applicability to long PWB*1 |
800×360mm |
800×560mm |
|
Component height |
6mm |
yes |
|
Component size |
Laser recognition |
0402(01005) ~ 33.5mm×33.5mm |
|
Placement speed (chip) |
Optimum |
0.040Sec. / chip(90,000CPH)*2 |
|
IPC9850 |
66,000CPH*2 |
||
Placement accuracy |
Laser recognition |
±0.05mm(±3σ) |
|
Feeder inputs |
|
Max.240 in case of 8mm tape |
*1 L-Wide size , Applicability to long PWB is optional. |
